SAML2

SAML 2 (Security Assertion Markup Language) is an open standard created to provide cross-domain single sign-on (SSO). In other words, it allows a user to authenticate in a system and gain access to another system by providing proof of their authentication. SAML uses XML to represent the user’s identity data and simple HTTP for data transport mechanisms.

📘 Instructions

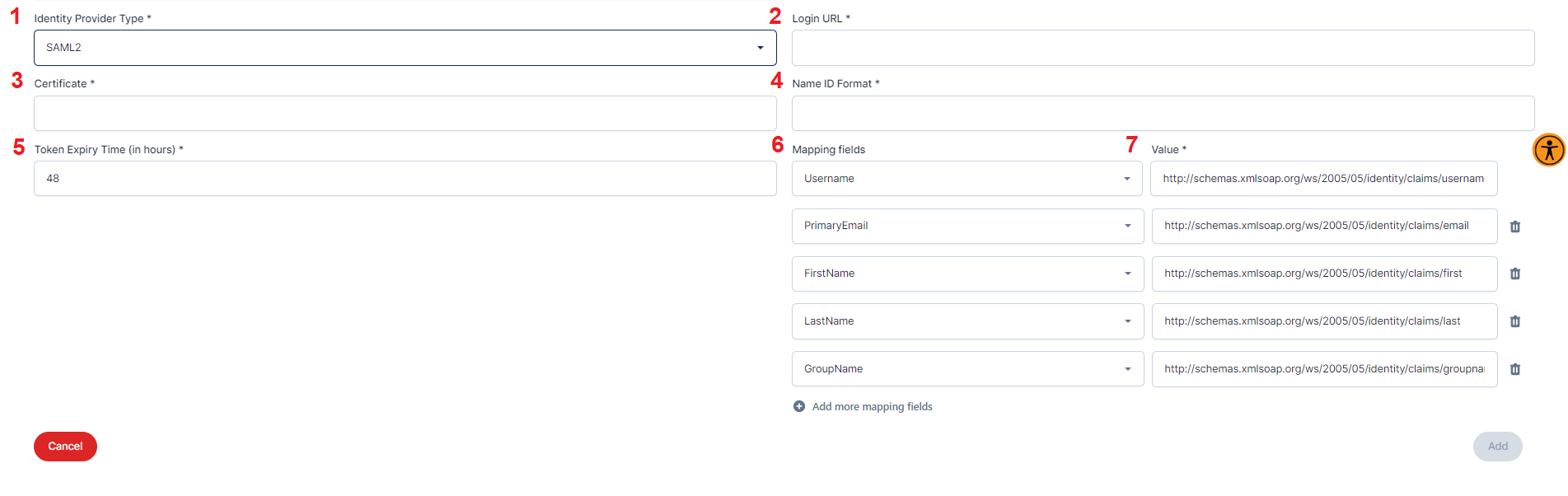

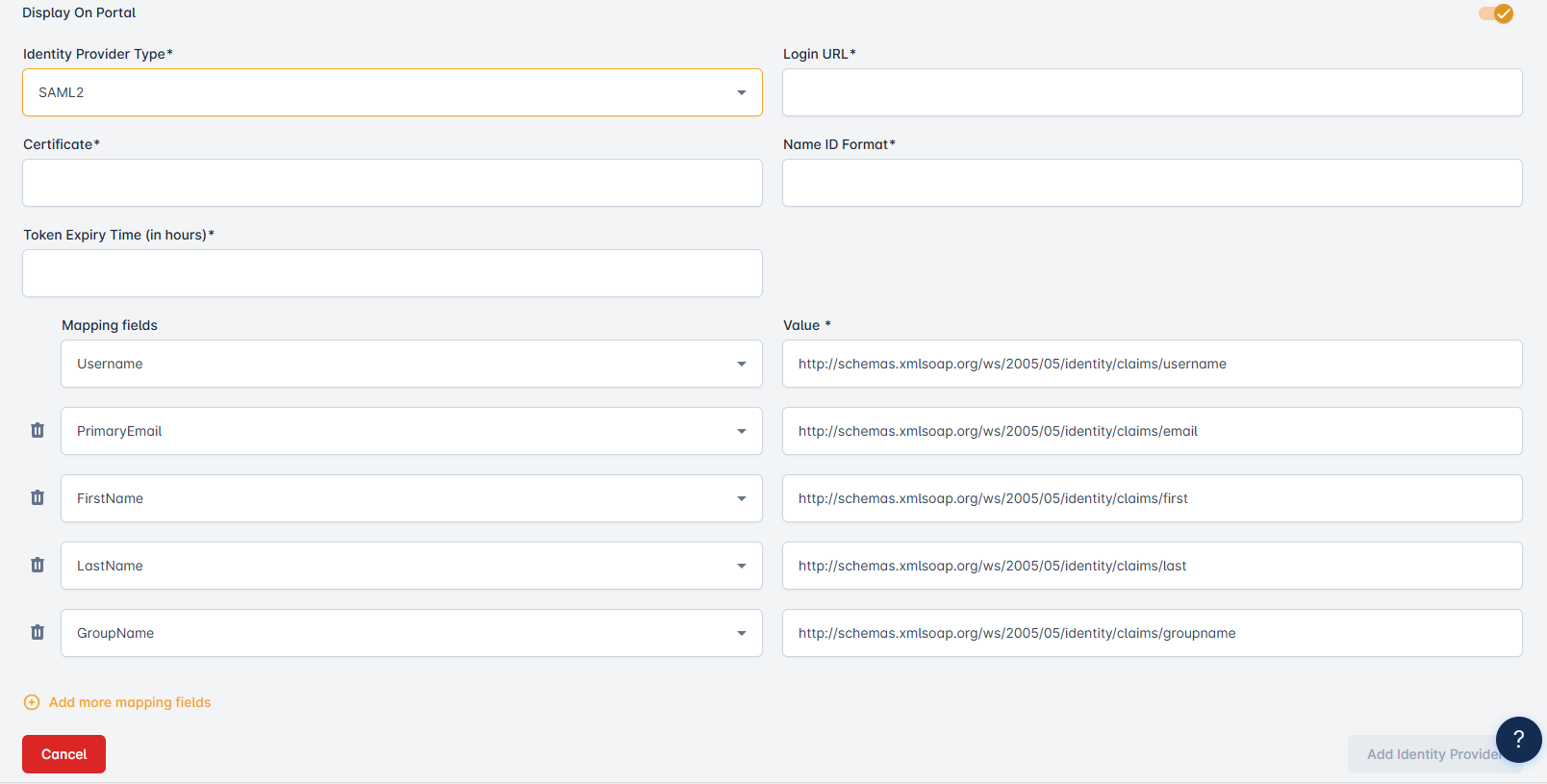

1. SAML2 | Identity-Provider-Type

2. SAML2 | Login-URL

3. SAML2 | Certificate

4. SAML2 | Name-ID-Format

5. SAML2 | Token-Expiry-Time(in-hours)

6. SAML2 | Mapping-field

7. SAML2 | Value

8. SAML2 | Callback-URL

Identity Provider Type

Refers to the category or specification of an identity provider used for authentication and authorization services, often in the context of single sign-on (SSO) and user access management. From this dropdown, select the SAML2 Identity Provider.

Login URL

Is the web address where users access a login page to enter their credentials and gain access to a system, website, or application. Enter the Login URL of the SAML2 Identity Provider here.

Certificate

Is a digital document or data file used to verify the authenticity, identity, or security of an entity, often in the context of secure communication or authentication. Enter the Certificate of the SAML2 Identity Provide here.

Name ID Format

Refers to the structure or format used to represent and exchange identity information in authentication and authorization processes, particularly in systems like SAML2 (Security Assertion Markup Language). Enter the Name ID Format for SAML2 Identity Provider here.

Token Expiry Time(in hours)

Refers to the period during which a security token, such as an access token or session token, remains valid for authentication or authorization purposes. Enter the Token Expiry Time here in hours.

Mapping field

Is a term commonly used in data integration and transformation. It typically refers to a data field that links or associates data from one source to a corresponding field in another source. Here are multiple dropdowns. From these dropdowns, select the mapping variables.

Value

The data within a mapping field that connects or associates data from one source with its counterpart in another source, facilitating data integration and transformation. Here are multiple dropdowns. From these dropdowns, select the mapping values.

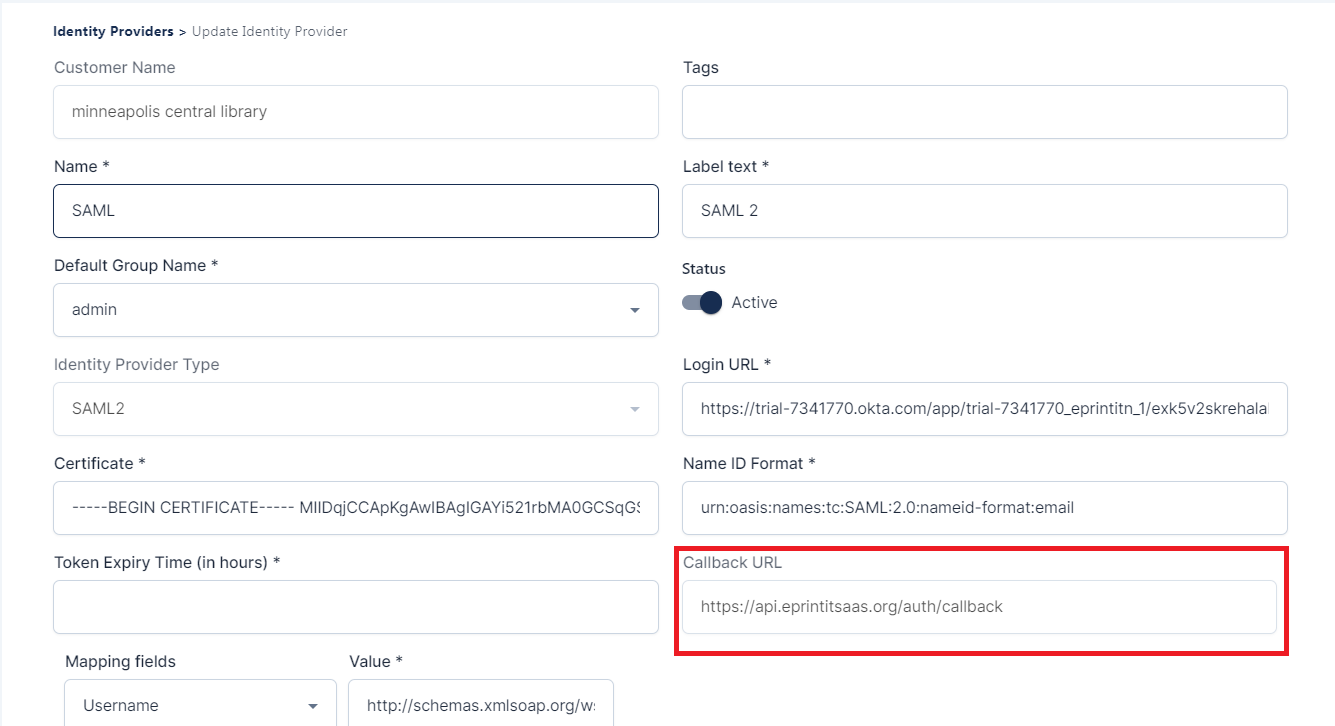

Callback URL

After adding the SAML2 Identity Provider, when you edit that identity provider then you will see the Callback URL section. This callback URL helps customers by redirecting them to us.
